HX3001-Synchronous Boost DC/DC Regulator
日期：2014-1-16 10:42:25 点击：285
日期：2014-1-16 10:42:25 点击：285
Features
? Up to 94% Efficiency
? Low voltage start-up：1V
? Shut-down current: < 1μA
? Input voltage：1V～4.4V
? Output voltage：2.5V～4.3V (Up to 5V with Schottky)
? Low switch on resistance RDS(ON), Internal switch: 0.35Ω
? 1.4MHz fixed frequency switching
? Automatic PWM/PFM mode switching
? Low profile SOT-23-6L package (lead-free packaging is now available)

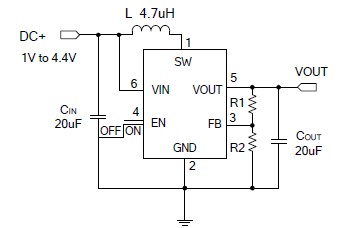

Typical Application Circuit
Description
The HX3001 is high efficiency synchronous, PWM step-up DC/DC converters optimized to provide a high efficient solution to medium power systems. The devices work under the input voltage between 1V and 4.4V with a 1.4MHz fixed frequency switching. These features minimize overall solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Automatic PWM/PFM mode switching at light load saves power and improves efficiency.
The HX3001 is capable of supplying an output voltage between 2.5V and 4.3V, the internal synchronous switch is desired to provide high efficiency without Schottky.
The HX3001 regulators are available in the industry standard SOT-23-6L power packages (or upon request).
Applications
? Digital cameras and MP3
? Palmtop computers / PDAs
? Cellular phones
? Wireless handsets and DSL modems
? PC cards
? Portable media players
