G5177B特点：
? Up to 90% Efficiency at Iout=2A VOUT = 5V from 3.3V Input
? Low 70μA Quiescent Current
? Guaranteed 3A Output Current at VOUT = 5V from 3.3V Input
? 1MHz PWM Switching Frequency
? Synchronous and Embedded Power Mosfets; No Schottky Diode Required
? Internal Soft-Start to Limit Inrush Current
? Adjustable Output
? Output turn off true shutdown function
? Current Mode Operation with Internal Compensation for Excellent Line and Load Transient Response
? Overload/Short-Circuit Protection with hiccup control
? Shutdown Current <1μA
? Thermal Shutdown
? Compact 8 pin,SOP8 (FD) package
应用：
? iPad-like computers, smart phones and portable handheld devices.

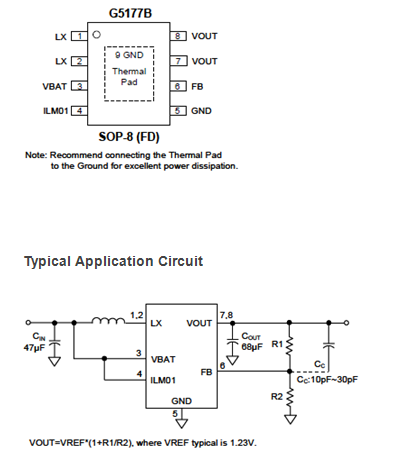

Pin Configuration：
|
