HW-USB-II-G

产品美国进口原装，保证质量与售后，请来电询价：0755-25310164

研究所及各高校批量更优惠！学术价活动进行中。

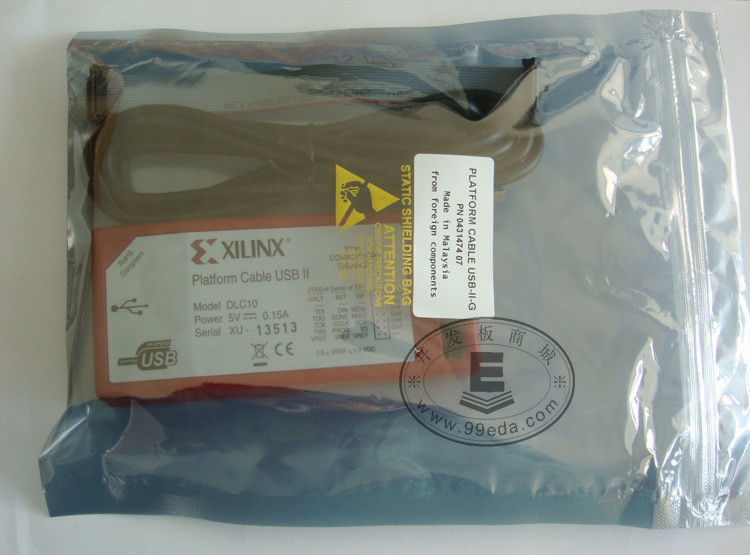

全部图片是实物拍照

产品图片

杜邦线

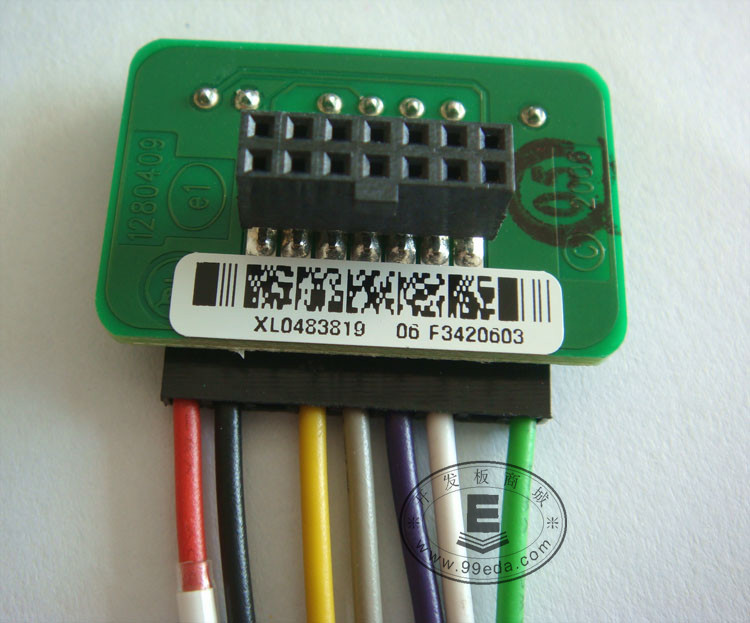

杜邦头接口





The Platform Cable USB II provides integrated firmware to deliver high-performance, reliable and user-friendly configuration of Xilinx FPGAs and programming of Xilinx PROM and CPLD devices. The Platform Cable USB II cable optimizes direct programming of third-party SPI flash memory devices and indirect programming of SPI or parallel NOR flash memory devices via the FPGA JTAG port. In addition, Platform Cable USB II is a cost effective tool for debugging embedded software and firmware when used with Xilinx applications such as the Embedded Development Kit and ChipScope Pro Analyzer.

    Platform Cable USB II is an upgrade to and backwards compatible with Platform Cable USB. It has industry-leading performance and is compatible with Full Speed (USB 1.1) and Hi-Speed (USB 2.0) ports.

Key Features

• High-performance FPGA configuration and PROM/CPLD programming
  • Includes innovative FPGA-based acceleration firmware encapsulated in a small form factor pod attached to the cable
  • Supports JTAG and Slave-Serial programming topologies
  • Firmware downloadable over cable
• Easy to use
  • Fully integrated and optimized for use with Xilinx iMPACT software
  • Intuitive multiple cable management from a single application
  • Compatible with Windows and Linux operating systems
  • Automatically senses and adapts to target I/O voltage
  • Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
  • Bus-powered USB device (no power supply required)
  • Flyleads compatible
  • Target power status LED
  • Firmware updates are transparent to the user
• Reliable
  • Backwards compatibility with Platform Cable USB, including Pb-Free (RoHS-compliant)
  • USB Integrators Forum (USB-IF) certified
  • CE and FCC compliant
  • Leverages industry standards, including JTAG Boundary-Scan IEEE 1149.1, SPI and USB 2.0
  • Compatible with Full-Speed and Hi-Speed USB ports
  • Programs and configures all Xilinx devices**
• Third-party PROM device programming support
  • Directly programs selected Serial Peripheral Interface (SPI) flash memory devices
  • Indirectly programs selected SPI or parallel flash memory devices via FPGA JTAG port
  • Highly optimized for use with Xilinx design tools - ISE Foundation Software, Embedded Development Kit, ChipScope Pro Analyzer and System Generator for DSP.
• Pb-Free (RoHS-compliant)
• Recommended for prototyping use only

** Note:Xilinx iMPACT software is required for programming and configuration

Xilinx platform cable usb(Xilinx 下载线)

1．目标器件VCC兼容 1.5V--5V

2．可配置所有Xilinx器件

3．支持iMPACT 和ChipScope

4．支持JTAG和Slave Serial配置模式

5．目标器件下载时钟可选，最高可达24 MHz

6．LED状态指示灯指示目标器件电源状态

7．使用方便，只有要USB 口的计算机都可以，无需并口



◆ 高性能FPGA和PROM设计和配置
· 创新的FPGA最新产品及相关固件下载
· 高速Slave Serial下载模式的设计
· 原型开发使用时推荐
◆ 使用简单
· 即插即用设备
· USB总线供电（无需外接电源）
· 目标下载时钟频率可选，最高可达24MHz
· 与全速（Full-Speed）和（Hi-Speed）USB端口兼容
· LED电源状态显示
· 固件软件ISE v6.3.03i支持iMPACT 和 ChipScope(仅供Windows系统)
· 固件软件ISE software v7.1i支持Linux
· 支持边界扫描和Slave Serial配置模式
· 完整和优化的Xilinx iMPACT 软件应用
· 可视的、多级下载管理应用
· 支持下列操作系统：
——Microsoft Windows XP Professional
——Microsoft Windows Vista
——Windows 2000
——Red Hat Enterprise Linux
——SUSE Linux Enterprise
· 自动判别和适应目标I/O电压
· 兼容目示器件电压范围：5V (TTL), 3.3V(LVCMOS), 2.5V, 1.8V and 1.5V
◆ 可靠性
· 向后兼容Cable USB平台包括Pb-Free (RoHS-compliant)
· USB综合Forum (USB-IF)认证
· 符合CE 和 FCC标准
· 行业标准：包括JTAG 边界扫描IEEE 1149.1，SPI 和 USB 2.0

器件支持列表:
- All Virtex FPGA families
- All Spartan FPGA families
- XC9500 / XC9500XL / XC9500XV CPLDs
- CoolRunner XPLA3 / CoolRunner-II CPLDs
- XC18V00 ISP PROMs
- XCF00S / XCF00P Platform Flash PROMs
- XC4000 series FPGAs Programs serial peripheral interface (SPI) flash PROMs
