NECSATA3桥接芯片D720231

供应NECSATA3桥接芯片D720231

USB3.0-TO-SATA3-D720231

专业提供NEC-USB系列-IC
Renesas(NEC) USB芯片
UPD720101GJ-UEN-A USB2.0
UPD720101F1-EA8-A USB2.0
UPD720102GC-YEB-A USB2.0
UPD720102F1-CA7-A USB2.0
UPD720113GK-9EU-A USB2.0 HUB
UPD720114GA-YEU-A USB2.0 HUB
UPD720133GB-YEU-A
UPD72874GC-YEB-A
13824340408QQ:1403135458

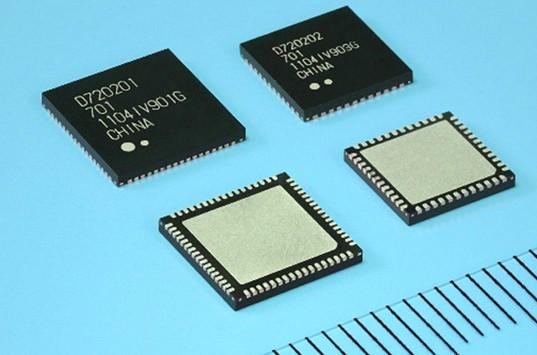

UPD720201K8-701-BAC-A USB3.0, 4 port host
UPD720202K8-701-BAA-A USB3.0 2 port host
UPD720202K8-DAT-A USB3.0 2 port host



OVERVIEW
The ?PD720231 is a USB3.0 to SATA3 Bridge LSI which complies with Universal Serial Bus 3.0
(USB3.0) Specification Revision 1.0 and Serial ATA (SATA) Specification Revision 3.0. The LSI is
integrated USB3.0 function controller and SATA III host controller with USB3.0 transceiver, USB2.0
transceiver and SATA III transceiver into one chip. The USB3.0 transceiver supports SuperSpeed
(SS) 5Gbps. USB2.0 transceiver supports High-Speed (HS) 480Mbps and Full-Speed (FS) 12Mbps.
And SATA III transceiver supports Gen1 1.5Gbps / Gen2 3Gbps / Gen3 6Gbps.
1.1 Features
? Compliant with Universal Serial Bus Specification Revision 3.0
? Supports Super/High-/Full-speed
? Supports Mass Storage Class UASP (USB Attached SCSI Protocol)
? Supports Mass Storage Class BOT (Bulk Only Transport)
? Includes SCSI Command hardware accelerator
? Supported number of stream is 32 + 1.
? Compliant with Serial ATA Specification Revision 3.0.
? Supports Gen1 / Gen2 / Gen3
? Supports Host initiated power management
? Supports multiple LUN
? Be capable of providing full ATA-8, 48-Bit LBA support, for drives larger than 2TB.
? Supports power management
? USB3.0 U1/U2/U3 state
? USB2.0 Suspend/LPM
? Integrated 32-bit RISC CPU
? 10 configurable GPIOs including
? SPI interface for serial flash ROM.
? Secondary SPI interface
? Two PWM interface
? Power supply control signal for SATA drive
? Multi voltage level support
? Clock input: 30MHz crystal
? On-chip reset circuit to remove external power-on-reset circuit
? Power supply: 5V single power supply, using 2 internal regulators
? On-chip 1.0V and 3.3V regulator
? Package: 48-pin QFN (6 x 6 mm)
