商品详细描述
With Foam-Fill You’ll Never Fix Another Flat Tire
有了聚氨酯填充(液态填充,泡沫填充),不用再担心你的轮胎会爆胎泄气
广泛用于港口高空作业车
㈠ 优点和特性
|
|
聚氨酯填充(液态填充,异态填充)可以让你的工作车辆行驶在满是铁钉、碎玻璃、尖锐金属片、碎石的环境下,不用担心轮胎会爆胎泄气而停止工作,为您提供一个最安全、方便的解决方案。
㈡ 产品型号
Tire P/N | Tire Size | PR | OD | SW | PSI | Load | Weight | Tread | Tread | Rim |
T51010165 | 10-16.5 | 10 | 31.06 | 10.94 | 75 | 4710@10MPH | 64 | R4 | 0.673 | 16.5 x 8.25 |
T51010165NM | 10-16.5 | 10 | 31.1 | 10.94 | 75 | 4710@10MPH | 64 | R4 NM | 0.673 | 16.5 x 8.25 |
4203J8 | 12-16.5 | 12 | 33.4 | 12.25 | 80 | 6320@80MPH | 87 | R4 | 0.72 | 16.5 x 9.75 |
DKADP | 12-16.5 | 12 | 33.875 | 12.75 | 80 | 6320@80MPH | 87 | R4 | 0.72 | 16.5 x 9.75 |
T51212165 | 12-16.5 | 12 | 33.25 | 12.35 | 80 | 6320@80MPH | 87 | R4 | 0.72 | 16.5 x 9.75 |
449051 | 14-17.5 | 14 | 35.97 | 13.7 | 75 | 8540@10MPH | 110 | R4 | 0.787 | 17.5 x 10.5 |
51414175 | 14-17.5 | 14 | 35.97 | 13.7 | 75 | 8540@10MPH | 110 | R4 | 0.787 | 17.5 x 10.5 |
DK1ML | 14-17.5 | 14 | 35.97 | 13.7 | 75 | 8540@10MPH | 110 | R4 | 0.787 | 17.5 x 10.5 |
T518445225G | 445/65D22.5 | 18 | 46.5 | 17.52 | 105 | 16100@5MPH | 257.7 | R4 | 0.902 | 22.5 x 13 |
T5143315165 | 33X15.50-16.5 | 14 | 34.65 | 15.75 | 80 | 8090@5MPH | 115.7 | R4 | 0.72 or 43/64" | 16.5 x 12 |
DKAF8 | 33x15.50-16.5 | 12 | 33.77 | 15.86 | 80 | 8090@5MPH | 102.2 | R4 | 0.72 or 43/64" | 16.5 x 12 |
T5143315165 | 33x15.50-16.5 | 14 | 33.58 | 16.05 | 80 | 8090@5MPH | 115.7 | R4 | 0.72 or 43/64" | 16.5 x 12 |
T512240175 | IN240/55D17.5 | 12 | 28.8 | 9.1 | 100 | 4400@10MPH; 6367 Static | 69 | R4 | 0.413 | 17.5 x 6.75 |
DKANN | IN385/65D19.5 | 16 | 39.13 | 15.63 | 100 | 11400@5MPH | 176 | R4 | 0.81 | 19.5 x 11.75 |
T516385195 | IN385/65D19.5 | 16 | 39.13 | 15.63 | 100 | 11400@5MPH | 176 | R4 | 0.81 | 19.5 x 11.75 |
T516385195NM | IN385/65D19.5 | 16 | 39.13 | 15.63 | 100 | 11400@5MPH | 176 | R4 NM | 0.81 | 19.5 x 11.75 |
DKANN | IN385/65D19.5 | 16 | 39.13 | 15.63 | 100 | 11400@5MPH | 176 | R4 | 0.81 | 19.5 x 11.75 |
T516385195 | IN385/65D19.5 | 16 | 39.13 | 15.63 | 100 | 11400@5MPH | 176 | R4 | 0.81 | 19.5 x 11.75 |
T516385225 | IN385/65D22.5 | 16 | 42.7 | 15.6 | 100 | 12,300@5MPH; 16,100 Static | 189 | R4 | 0.811 | 22.5 x 11.75 |
4203R2 | IN385/65D22.5 | 16 | 43.62 | 15.25 | 100 | 12,300@5MPH; 16,100 Static | 189 | R4 | 0.811 | 22.5 x 11.75 |
DKANV | IN385/65D22.5 | 16 | 42.38 | 15.25 | 100 | 12,300@5MPH; 16,100 Static | 189 | R4 | 0.811 | 22.5 x 11.75 |
DKAPC | IN445/55D19.5 | 16 | 40.25 | 16.75 | 85 | 13200@5MPH | 191 | R4 | 0.81 | 19.5 x 13 |
T516445195 | IN445/55D19.5 | 16 | 40.25 | 16.75 | 85 | 13200@5MPH | 191 | R4 | 0.81 | 19.5 x 13 |
T518445225G | IN445/65D22.5 | 18 | 46.38 | 16.25 | 115 | 16100@5MPH | 222 | R4 | 0.902 | 22.5 x 13 |
DKAP1 | IN445/65D22.5 | 18 | 45.5 | 17.25 | 115 | 16100@5MPH | 249 | R4 | 0.902 | 22.5 x 13 |
HBR—An OTR Innovation
OTR’s “High Bead Ratio ™” (HBR) tires offer a low sidewall design which has much less deflection and uses and average of 30% less foam fill. HBR tires are available in several styles and stead tread patterns. HBR assemblies allow for additional clearance around the wheel hub and steering arm.此系列轮胎采用低侧壁设计,可以有效减小轮胎的挠度和异态填充量,平均比一般轮胎可以节省30%的异态填充量。
Tire P/N | Tire Size | PR | OD | SW | PSI | Load | Weight | Tread | Tread | Rim |
T50623105360 | 23x10.50-360 | 6 | 22.9 | 9.4 | 40 | 3302 Static | 24 | HF3 | 0.5 | 14 x 8 |
DKABC | 26X12D380 | 8 | 26 | 12.12 | 42 | 3420@5MPH | 39 | HF3 | 0.653 | 15 x 10 |
T51026380NM | 26X12D380 | 8 | 26 | 12.12 | 42 | 3420@5MPH | 39 | HF3 NM | 0.653 | 15 x 10 |
T51026380 | 26X12D380 | 8 | 26 | 12.12 | 42 | 3420@5MPH | 39 | HF3 | 0.653 | 15 x 10 |
DKAP4 | 15-625 | 16 | 40.06 | 15.22 | 100 | 12,300@5MPH | 154 | R4 | 0.81 | 24.5 x 13 |
T51615625 | 15-625 | 16 | 40.06 | 15.22 | 100 | 12,300@5MPH | 154 | R4 | 0.81 | 24.5 x 13 |
T51618625 | 18-625 | 16 | 40.75 | 17 | 100 | 15,200@5MPH | 174 | R4 | 0.81 | 24.5 x 15 |
DKAP5 | 18-625 | 16 | 40.75 | 17 | 100 | 15,200@5MPH | 174 | R4 | 0.81 | 24.5 x 15 |
T51026520 | IN265/50D20 | 10 | 32.2 | 10.5 | 75 | 7420 Static | - | R4 | 0.673 | 20 x W9 |
T51231520 | IN315/55D20 | 12 | 34.1 | 12.5 | 80 | 6,320@10MPH, 9650 STATIC | 87 | R4 | 0.72 | 20 x 11 |
DKAN3 | IN355/55D625 | 14 | 36.9 | 14.18 | 75 | 7,600@10MPH | 115 | R4 | 0.787 | 24.5 x 11.75 |
T514355625 | IN355/55D625 | 14 | 37.55 | 13.5 | 75 | 7,600@10MPH | 115 | R4 | 0.787 | 24.5 x 11.75 |
T518445710 | IN445/50D710 | 18 | 46.82 | 18 | 85 | 16,100@5MPH | 207.2 | R4 | 0.866 | 28 x 15 |
T5148401550510 | 840X15.50-510 | 14 | 33.85 | 15.43 | 90 | 8090@5MPH | 104 | R4 | 0.72 or 43/64 | 20 x 14 |

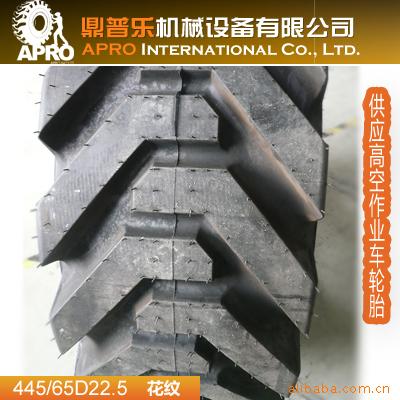

三,产品图片
|
|
|
|
聚氨酯填充 (液态填充)的使用背景
轮胎是各种车辆必不可少的载重部件之一。根据轮胎工作原理的不同,有充气轮胎和实芯轮胎之分,后者主要用于工厂、 仓库、 码头等领域使 用的叉车、 电瓶车和起重车辆。
对于各种充气轮胎,虽然在承载允许范围之内具有非常好的舒适性、缓冲性和较高的行驶速度等,但在废弃物回收厂,码头,建筑工地…等特殊条件下,轮胎往往容 易被刺穿而导致漏气,造成误工及财产损失,因此 在一些采矿、 土木建筑等场所利用橡胶实芯轮胎 来代替充气轮胎。普通橡胶实芯轮胎 ,虽然具有 较高的载荷性能,但缓冲性能差,行驶速度低,通常只能在 15km/ h 以下使用。
采用低硬度聚氨酯弹性体填充普通充气轮胎,由于填充材料硬度一般只有邵氏A10~20 度,故这种轮胎不仅具有实芯轮胎的特点,而且缓冲性能好,载重量大,具有 类似于充气轮胎的减振性能,可用于较高速度行驶(速度高达80km/ h) 。
聚氨酯填充(液态填充,泡沫填充)可以让你的工作车辆行驶在满是铁钉、碎玻璃、尖锐金属片、碎石的环境下,不用担心轮胎会爆胎泄气而停止工作,为您提供一个最安全、方便的解决方案。
