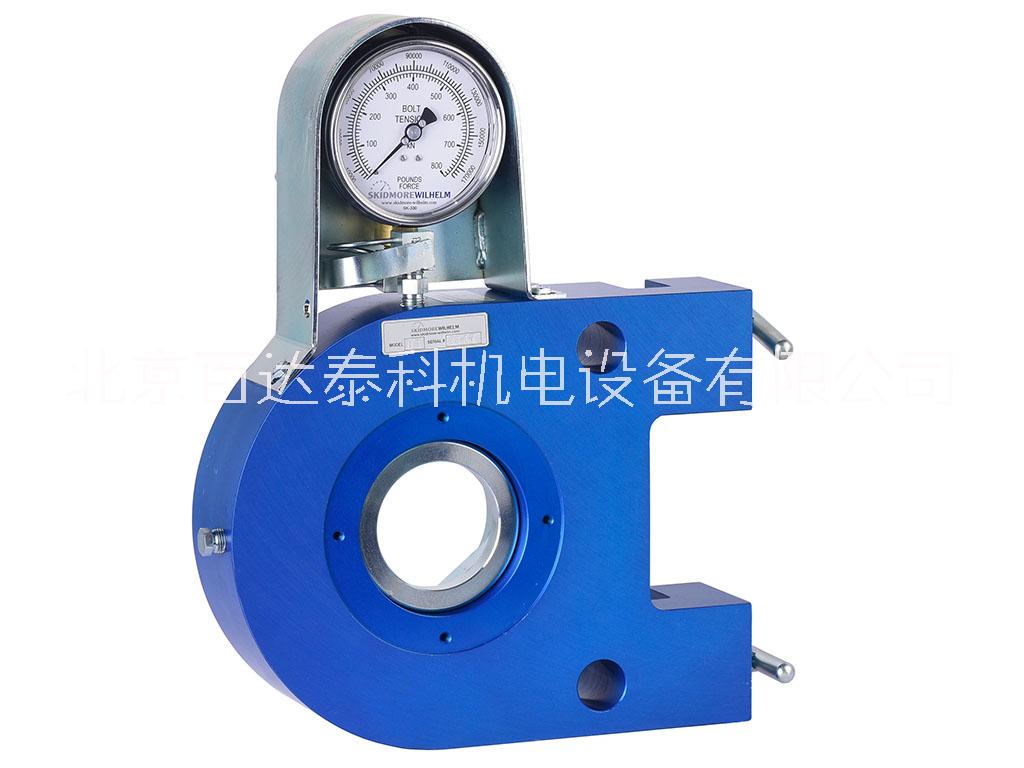

K型螺栓预紧力仪

K型扭力仪的参数： K型用于测试紧固件或者冲击扳手。压力计的读数是以磅为单位的，在活塞上施加一个已知的压缩载荷将等于压力计的读数。 ITEM # PART # DESCRIPTION QTY. 1 K-001 BODY 1 2 K-002 PISTON 1 3 K-003 BASE 1 4 K-007 GAUGE 1 5 K-008 SMALL O RING 1 6 K-009 LARGE O RING 1 7 K-010 SMALL BACK-UP WASHER 1 8 K-011 3/8” DOWEL PIN 2 9 K-012 LARGE BACK-UP WASHER 1 10 K-013 5/8” DOWEL PIN 1 11 K-014 SNAP RING 1 12 K-015 5/16-18 X 1-1/2” SHCS PLATE SCREW 4 13 K-017 1/2-13 X 1-1/2” SHCS BASE SCREW 4 14 K-018 EYE BOLT 1 15 K-019 GAUGE MOUNTING PLATE 1 16 K-020 1/8” COPPER TUBE 1 17 K-021 GAUGE FITTING 1 18 K-022 BODY FITTING 2 19 K-023 1/4-20 X 5/8 FHCS MTG PLATE SCREW 3 20 ML-016 1/4-20 X 1-1/4” HHCS GAGE SCREW 3 21 K-025 GROMMET 9 22 K-027 1/4-20 JAM NUT 3 23 K-028 1/2 X 3 CARRIAGE BOLT 2 24 M-018 NAMEPLATE 1 25 M-019 DRIVE SCREWS 2 26 M-021 1/4” PIPE PLUG 1 27 K-033 RETAINER 1
