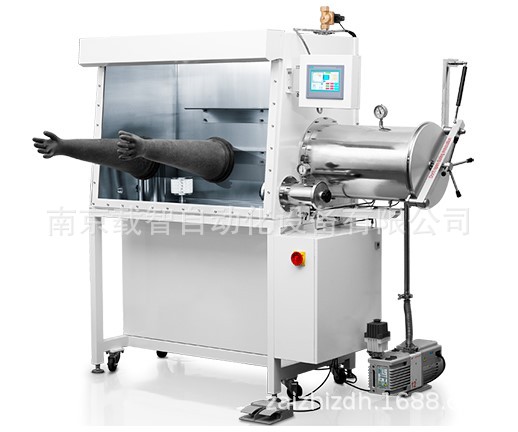

真空（循环净化）手套箱

手套箱是实验室的一种大型设备，使实验者可以用手进行实验操作但没有直接接触。

形状一般是完全封闭的箱状，前方或全体透明。有两个带臂的长手套，可供实验者把手伸进去，隔手套在箱内操作。

手套箱有下列用途：

1. 操作需要在非空气的环境下进行的实验，例如遇氧气反应，有些反应需要在惰性气体如氩气环境中进行。
2. 使用开放的放射源，用铅和铅玻璃保护。
3. 需要无水环境下进行生产试验的。

研发型手套箱

●研发型手套箱系采用循环净化方式对箱体内的水氧含量

进行控制，适用于PPM级的科学实验中

●循环净化系统除水除氧速度快，氧含量可达0～10ppm，

水露点可达-75～-60℃，水氧含量低可达1PPM

●手套箱主要由手套箱箱体、大小过渡室、循环净化系统

、净化材料再生还原系统、PLC控制系统、真空系统、压力

控制系统、显示系统、测量系统等组成

●可按用户要求订制，集成冰箱、气压机、加热系统、有

机溶剂吸附器、显微投影、真空炉、冷井、甩胶机等

• Main Chamber Dimensions
  Length: 1220mm (48.0”)
  Depth: 750mm (29.5”)
  Height: 900m (35.4”)
  Material: Stainless steel type 304, thickness 3mm (1/8”)
  Sight Windows: Inclined, Safety Glass, thickness 8mm (1/3”)
  Gloves Ports: POM (Polyoxymethylene), 220mm (8.7”) Diameter
  Gloves: 8B1532
  Dust Filter: HEPA 0.3μ, one gas inlet, one gas outlet
  Shelving: Stainless Steel, two fixed shelves (adjustable shelves ailable)
  Lighting: External LED Lights, front mounted above sight glass.
  Feedthroughs: One power feedthrough, 3 blind-flanges
• Large Antechamber
  Diameter: 360mm (14.2”) or 400mm (15.7”), Length 600mm (23.6”)
  With Sliding tray
  Spindle lock door, Vertical operation with lifting mechanism
  Automatic operation via solenoid valve
• Small Antechamber
  Diameter 150 mm (5.9”) or 100mm (3.9”), Length 300mm(11.8”)
  Hinge door
  Maal operation via hand valve
• Purifier
  Removal of H2O and O2  to Less than 1 ppm moisture and oxygen
  Absorber Unit: 5kg Copper catalyst,5kg Molecular sieve
  Capacity to remove oxygen, 60L , moisture 2000g.
  Encapsulated Blower: 90m3/h
  Regeneration: PLC cool all process including heating, ioducing mix gas (working gas mixed with Hydrogen 5-10%), etc.
• System Cool PLC and HMI: Siemens S7
• Vacuum Pump 8m3/h Rotary vane pump with oil mist filter and gas ballast
