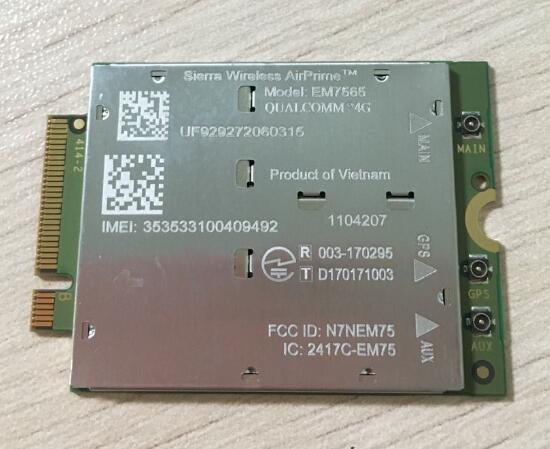

Sierra模块EM7565

AirPrime?EM7565 Specifications

Cellular

? LTE DL Product variants:Cat 15 –800Mbps (80MHz 4CA with 256 QAM)Cat 12 –600Mbps (60MHz 3CA with 256 QAM)Cat 10 –450Mbps (60MHz 3CA with 64 QAM)

?Uplink speed up to 150 Mbps (Cat 13)(64 QAM +  -band contiguous 2CA)

?FDD/TDD LTE Bands:1-5, 7, 8, 9, 12, 13, 17, 18, 19, 20, 26, 28, 29, 30, 32, 41, 42, 43, 66

?LTE-U/ LTE-LAA Bands: 46, 252, 255 (5GHz)

?DC-HSPA+ (42/5.76 Mbps)1,2,3,4,5,6,8,9,19

Hardware Specs

Dimensions: 42 x 30 x 2.3 mm [Type 3042]

Chipset: Qualcomm

Main interfaces:

?USB 3.0, USB 2.0 & PCIe(Future)

?GPIOs for antenna tuning and SAR

Temperature ranges:

?–30C to +70C (operating class A) TBC

?–40C to +85C (operating class B) TBC

?Storage Temperature: –40C to +85C

Key Features

Single WW SKU for North America, Europe, APAC & ROW

?GNSS (GPS, Glonass, Galileo, BeiDou) Dedicated antenna connector with bias or shared on diversitySupport for SUPL and XTRA

?Embedded SIM (eUICCcapable) -Optional

?Low power consumption

?Storage for multiple FW images in on board Flash

?Gobi API, MBIM interface

?Basic and Extended AT Commands

?Host OS: Skylight for Windows 7, 8/8.1, 10; Linux and Android

Standard features:

?Secure boot prevents unauthorized code on the target

?Firmware image switching for network flexibility

?Dual SIM single standby (DSSS) enhances roaming coverage

?Free, unlimited FOTA through AirVantage?FOTA Edition

Certifications and Approvals

Planned: FCC, IC, CE, PTCRB, GCF, NCC

?Planned: Verizon, AT&T, Vodafone, Telstra, docomo
