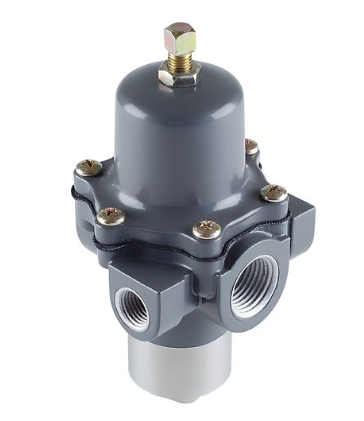

费希尔FISHER 167D 系列切换阀用于向指挥器作用式控制器和其他气动仪器提供降低的稳定气化液体压力。 167D 和 167DS 型阀门是两通切换阀。 167DA 和 167DAS 型阀门是三通切换阀。广州奥丽斯特燃气设备有限公司是美国FISHER产品华南区域(广东省)艾默生集团授权代理商。2020美国FISHER技术选型020*叁贰贰0162张S中国费希尔调压网www.zgfisher.com 【张工15876552411手机同微XIN】 功能 紧凑 简易精确调节 维护简单 经久耐用 耐腐蚀的紧固件 可选不锈钢材料结构 规格 可选结构 167D 和 167DS:两通切换阀 167DA 和 167DAS:三通切换阀 阀体尺寸和端口连接方式 端口 A 和 C:1/4 或 1/2 NPT 排气和控压连接(端口 D)和端口 B:1/4 NPT 最大入口压力(阀体额定值) 400 psig / 27.6 bar 温度适用范围 标准螺栓:-20 至 180°F / -29 至 82°C 不锈钢螺栓:-40 至 180°F / -40 至 82°C FKM 装饰件:0 至 300°F / -18 至 149°C 取压方式 内取压 167D Series switching valves are used to deliver constant reduced pressure of gaseous fluids to pilot-operated controllers and other pneumatic instrumentation. Types 167D and 167DS are two-way switching valves. Types 167DA and 167DAS are three-way switching valves. Features Compact Easy and Accurate Adjustment Ease of Maintenance Rugged Construction Corrosion Resistant Fasteners Optional Stainless Steel Material Construction Specifications Available Constructions 167D and 167DS: two-way switching valves 167DA and 167DAS: three-way switching valves Body Size and End Connection Style Ports A and C: 1/4 or 1/2 NPT Vent and Control Pressure Connections (Port D) and Port B: 1/4 NPT Maximum Inlet Pressure (Body Rating) 400 psig / 27,6 bar Temperature Capabilities Standard Bolting: -20 to 180°F / -29 to 82°C Stainless Steel Bolting: -40 to 180°F / -40 to 82°C FKM Trim: 0 to 300°F / -18 to 149°C Pressure Registration Internal Fisher China Guangzhou Honest Gas Equipment Co., LTD. www.zgfisher.com Tel:+86-020-32201622 Mobile phone|weixin:15876552411 E-mail:363495724@qq.com
