FGV-XY 带USB输出的数字

概述

9 Ranges up to 200lbs
Measures Push / Pull Force

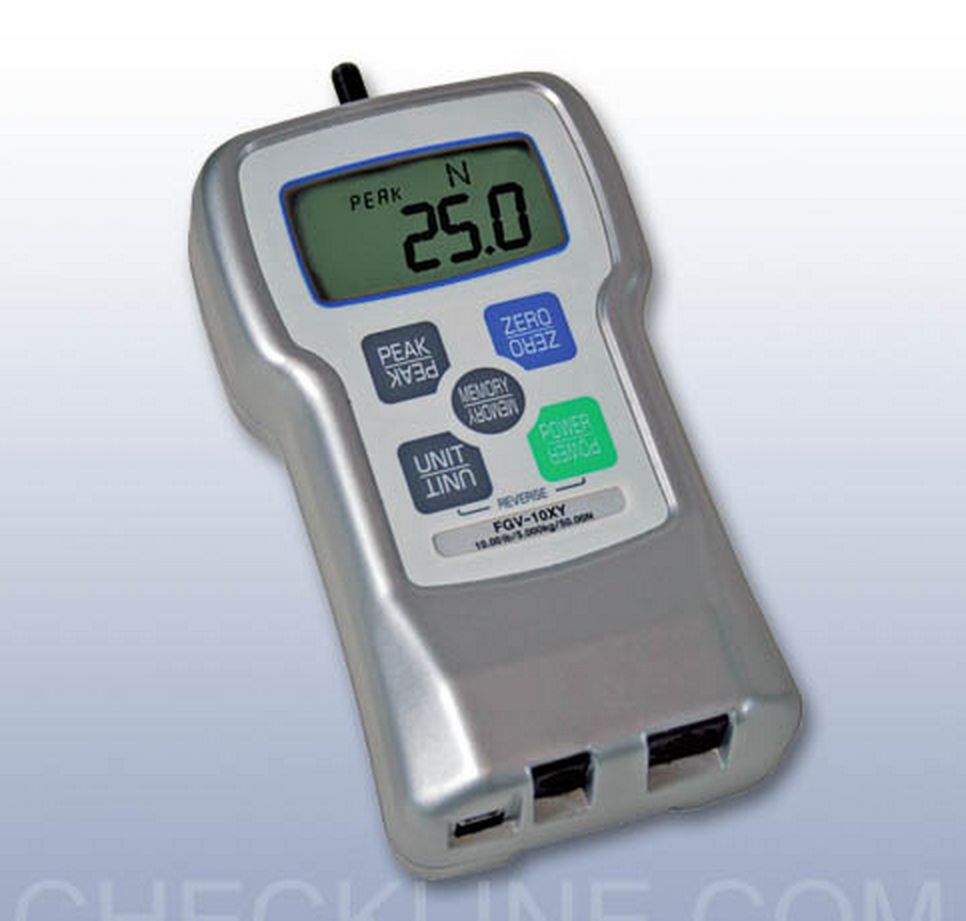

The FGV-XY force gauge delivers industry-value with an extensive list of features including USB output, reversible display and a rugged metal housing. Each gauge is supplied as a complete kit with several screw-on adapters providing a complete force testing instrument for use in a wide variety of industries. All models include built-in memory for 1000 values, easily downloaded via the USB data output to a PC using the software.

Includes software allows force values can be transferred in real time or batch downloaded after testing is complete. In addition, RS-232C and analog outputs are also supplied providing the FGV-XY with maximum flexibility for data transfer and recording. Additionally, measurement statistics are automatically calculated and stored and can be recalled to the display for viewing or can be downloaded. Statistics include maximum, minimum, average and standard deviation.

The FGV-XY provides is suitable for use in numerous industries & including incoming quality inspection, finished goods testing, R&D as well as on wire pull testing, wire crimps, trigger pull, brake pedal, aerospace, ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.



特性

1. 1000 Hz Sample Rate

2. Selectable Auto-Shut Off

3. AC-adapter

4. Accuracy of ±0.2%

5. Small Size

6. USB, RS-232 & Analog Outputs-- all included!

7. Automatic Calculation & Display of Statistics

8. 9 separate capacities from 0.5 Lb to 200 Lb

9. 3 Memory Modes

10. 200% Overload Capacity

11. Built In User-Set Hi-Lo Alarm Limits

12. Rugged Die Aluminum Housing & Rugged

13. Reversible Display

14. 2 Year Warranty



参数

Measuring Modes Realtime, Compression Peak, Tension Peak

Display Update Rate User Selectable: 1, 2, 3, 5, 10, 20 times per second

Sampling Rate 1000 times per second (1000Hz/1KHz)

Accuracy ± 0.2% F.S.

Temperature Drift Gain : ± 0.01% LOAD / Zero : ±0.01% / R.C. / Drift of zero point can be cancelled with tracking function.

Display Main display: 4-digits 12mm high, Reversible

Units display: 3-digits 7mm high

Other display: "LO BAT"(Low Battery Voltage), "BAT"(Battery Charging), "OVR"(Overload), "Peak"(Peak Hold)

Overload 200% of Full Scale

On Model FGV-200XY: 150% F.S.

Tracking User Selectable (ON/OFF)

USB Output Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).

RS-232C Output Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.

Analog Output ± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms

Overload/Comparator Output Open-collector output (Max DC30V/5mA).

Power Rechargeable Nickel hydride battery or AC adapter/charger. Usable while charging.

Operating Time Approximately 8 hours after a full charge. Charging Time: 16 Hours Max.

Auto Power Off Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter.

Memory function Continuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics (max, minimum, peak, average, standard deviation)

Comparator function User Selectable: HI and LO

Temperature range 0 ~ 40 °C (32 ~ 104 °F)

Humidity range 35 ~ 85% RH

147mm (L)x 75mm (W) x 38mm(H)

Weight Approx. 450g

On Model FGV-200XY: Approx. 500g

Accessories(Included) AC adapter/charger, carrying , hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable

Toriemon Software for WIN 7 & 2000 (64 bit) and XP (32 bit), and is meant for use with Office/Excel 2000 and higher

Warranty 2 Years
