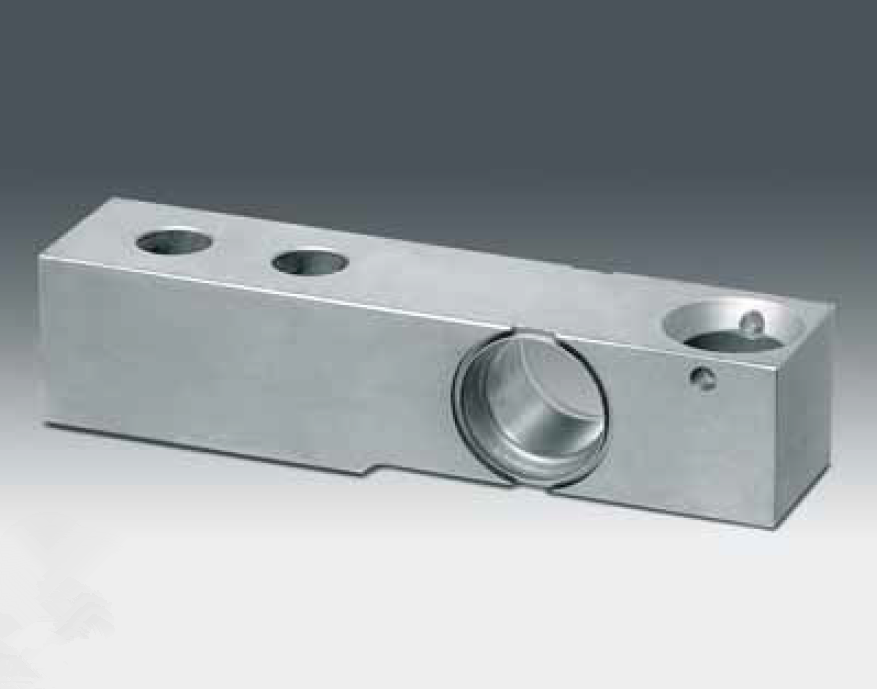

MP79T 不锈钢称重传感器

MP79/MP79T 不锈钢称重传感器

深圳市汉斯福特科技有限公司

座机：0755-26552352

手机：18018750116

传真：0755-23343535

Q  Q: 3174269615

公司地址：龙华新区大浪街道大浪社区伟达工业园A栋2楼

公司网址：www.huntsort.com



概述

227 kg … 5,099 kg

– Full stainless steel

– Compatible with other sources

– Hermetically welded seal (IP68, IP69K)

– Matched output

– Approved according to OIML R60

– Ex version available

– Platform scales

– Tank and hopper scales



参数

Technical Data C3MR

Accuracy class (Combined error) 0.020 % Cn

Maximum capacity Emax 227 | 454 | 1,134 | 2,268 | 5,099 kg

Maximum usable load Eu 200 % Emax

Destructive load Ed > 300 % Emax

Safe side load Elq 100 % Emax

Maximum number of LC intervals nLC 3,000

Minimum LC verification interval vmin = Emax | Y Y 11,500 | 11,000 (Emax = 5,099 kg)

Rated output Cn 2.0 mV/V

Tolerance on rated output Dc < ± 0.1 % Cn

Zero output signal Smin < ± 5.0 % Cn

Creep. during 30 min. dcr < ± 0.0166 % Cn

Temperature effect on Smin TKSmin < ± 0.0122 | < ± 0.0127 (Emax = 5,099 kg) % Cn / 10 K

Temperature effect on C TKC < ± 0.010 % Cn / 10 K

Input impedance RLC 1,100 ± 50 Ω

Output impedance RO 1,000 ± 2 Ω

Insulation impedance (100 V DC) RIS >5 GΩ

Recommended supply voltage Bu 5 … 15 V

Nominal ambient temperature range BT –10 … +40 °C

Usable ambient temperature range BTu –40 ... +80 °C

Technical Data C3MR

Nominal deflection snom 0.21 (Emax = 227 kg); mm

0.24 (Emax = 454 kg);

0.32 (Emax = 1,134 kg);

0.47 (Emax = 2,268 kg);

0.52 (Emax = 5,099 kg)

Cable length 5.0

Cable type 6 conductor TPE cable

(AWG 26) shield grounded

Sensor material Stainless Steel 17-4PH (1.4548)

Protection class (acc. to IEC 529 resp. DIN 40050) IP68, IP69K



订货型号

Type Order number MP 79/227kgC3MR 9408 279 07120 MP 79/454kgC3MR 9408 279 07150 MP 79/1,134kgC3MR 9408 279 07210 MP 79/2,268kgC3MR 9408 279 07220 MP 79/5,099kgC3MR 9408 279 07250 MP 79/227kgC3MRE 9408 679 07120 MP 79/454kgC3MRE 9408 679 07150 MP 79/1,134kgC3MRE 9408 679 07210 MP 79/2,268kgC3MRE 9408 679 07220 MP 79/5,099kgC3MRE 9408 679 07250

Type Order number MP 79T/227kgC3MR 9408 279 17120 MP 79T/454kgC3MR 9408 279 17150 MP 79T/1,134kgC3MR 9408 279 17210 MP 79T/2,268kgC3MR 9408 279 17220 MP 79T/5,099kgC3MR 9408 279 17250 MP 79T/227kgC3MRE 9408 679 17120 MP 79T/454kgC3MRE 9408 679 17150 MP 79T/1,134kgC3MRE 9408 679 17210 MP 79T/2,268kgC3MRE 9408 679 17220 MP 79T/5,099kgC3MRE 9408 679 17250
