温州中环ZHGGP-50型喷雾剂理瓶灌装贴标生产联动线气雾剂生产线


温馨提示:产品价格图片仅供参考,可按要求定制,详情来电咨询!

undefined

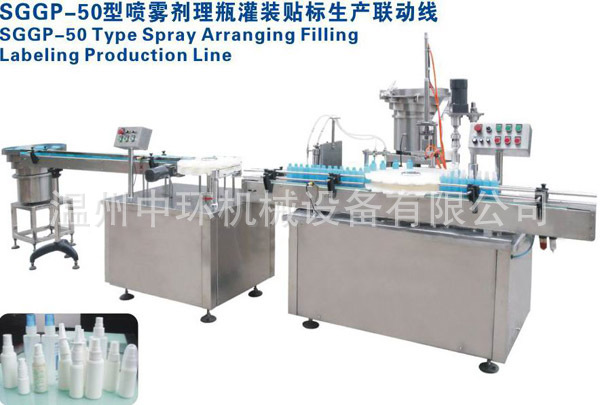

ZHGGP-50型喷雾剂理瓶灌装贴标生产联动线

用途与简介:

本生产线由全自动理瓶机、灌装旋(轧)盖机、立式贴标机组成,可全自动完成理瓶、灌装、旋(轧)盖、贴标打码等工序,主要用于喷雾剂溶液的联线生产.本生产线完全符合国家新版GMP要求。

特点:

理瓶机系最新设计,完全取代手工,符合GMP规范。

直线式灌装旋(轧)盖机操作便捷、灌装精准、可选择不同的生产速度。

立式贴标机采用PLC及步进电机控制,贴标精准,效率高,有热打码。

技术参数:

适用规格15-500ml

生产能力30-45瓶/分 (2头)60-80瓶/分(4头)

灌装精度≤±1%

旋(轧)盖率≥99%

电源220V/50Hz

功率8 kw

生产线总长7000*1000*1700mm



ZHGP-50-type spray bottle filling management joint production line labeling

Purpose and introduction:
The line consists of automatic bottle unscrambler, filling rotation (rolling) cover machine, vertical labeling machine components, can be fully automated complete management bottles, filling, rotating (rolling) cover, label coding processes, mainly used Spray the solution on the production line in this production line full compliance with the new GMP requirements.
 Features:
Unscrambler Department of latest design, completely replace the manual, meet the GMP standard.
Linear filling rotation (rolling) cover machine operation easy, accurate filling, choose a different production rate.
Vertical Labeling Machine with PLC and the stepper motor control, labeling accuracy, high efficiency, hot coding.
Technical parameters:
Applicable standard 15-500ml
Production capacity of 30-45 bottles / min 60-80 bottles / min
Filling accuracy ≤ ± 1%
Rotation (rolling) cap rate ≥ 99%
Power 220V/50Hz
Power of 8 kw
Line length 7000 * 1000 * 1700mm
