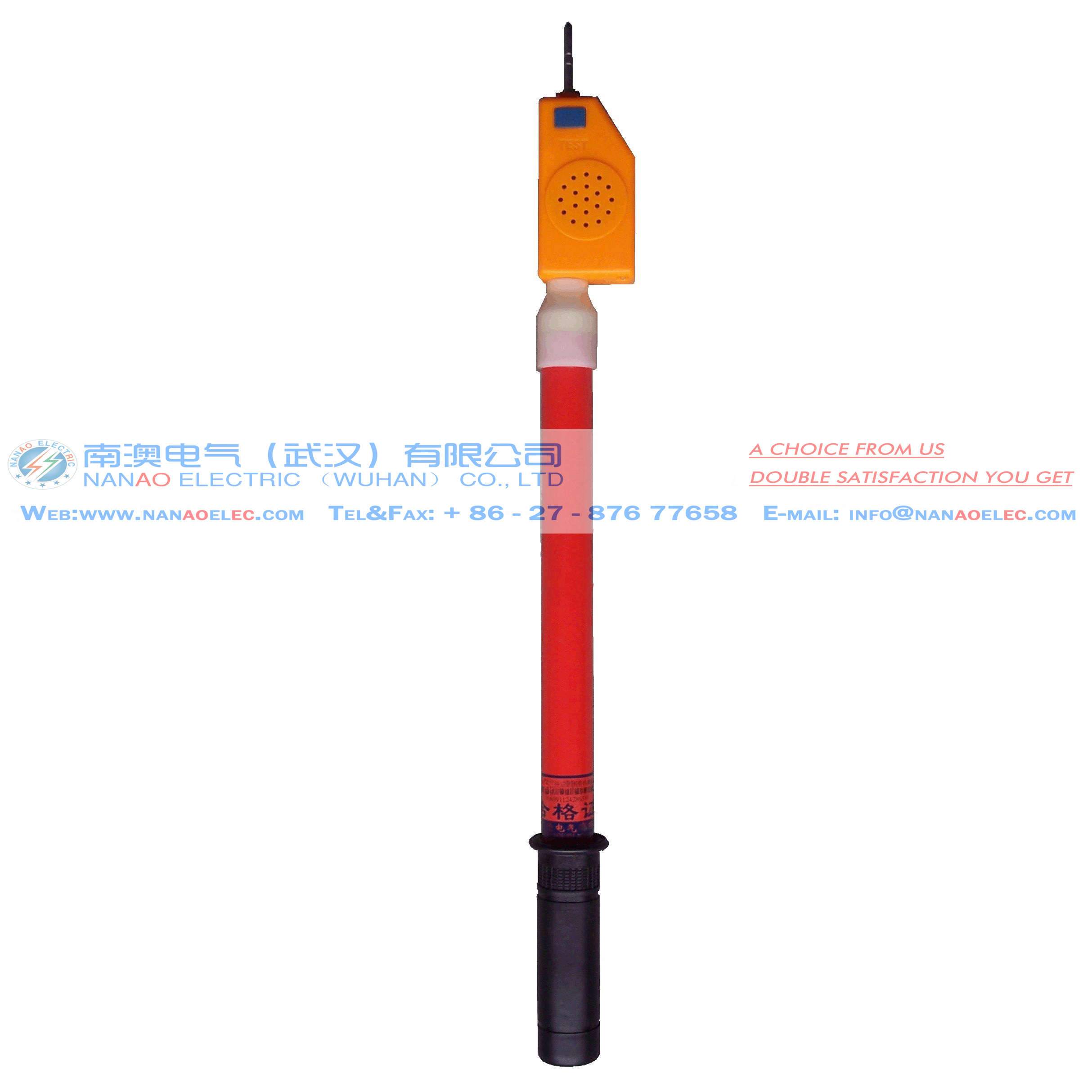

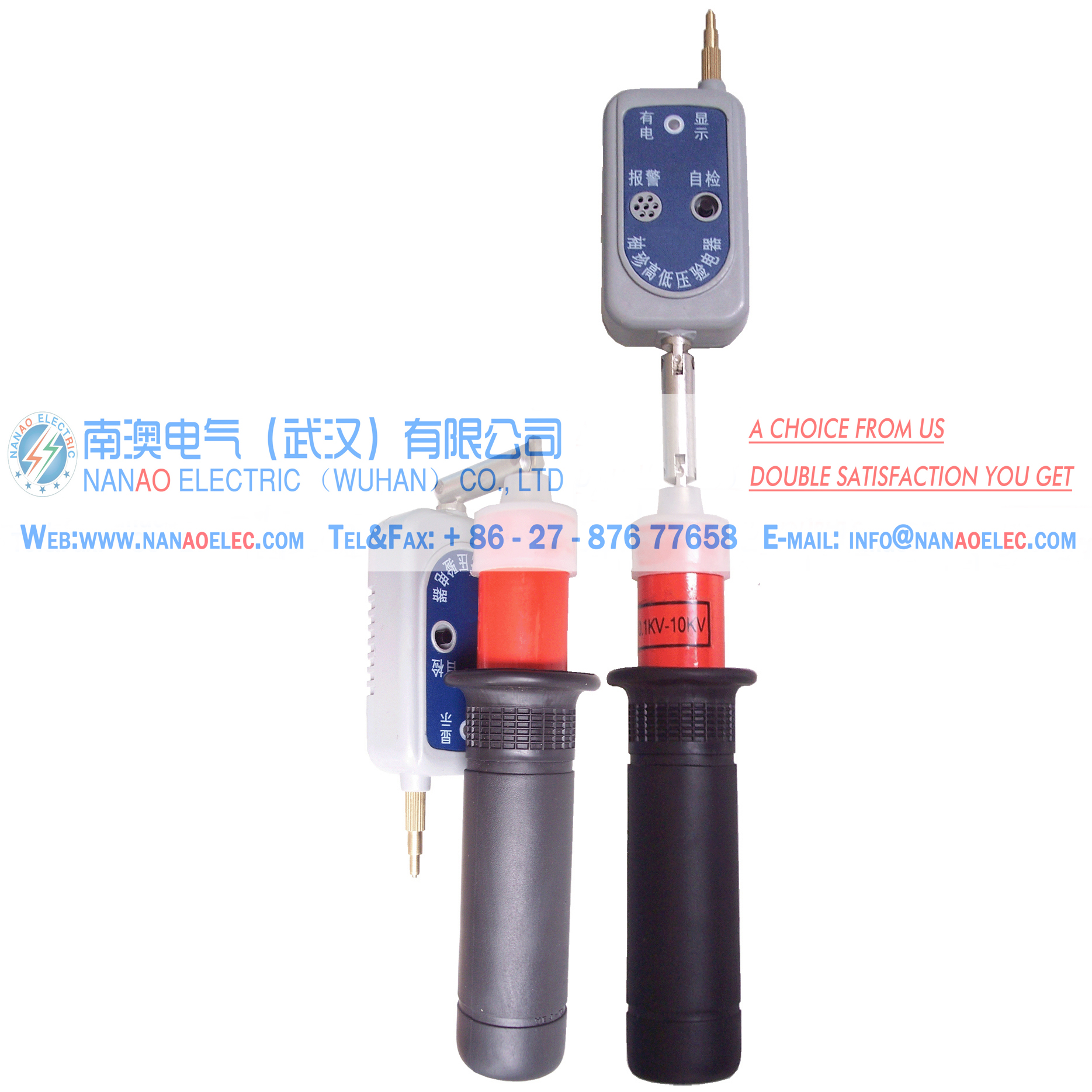

NAECQ系列高压试验验电器

NAECQ系列高压试验验电器    NAECQ series of high-voltage electroscope

用途简介

高压试验验电器由电子集成电路制成的声光指示 ，性能稳定、测量数据可靠。具有全电路自检功能和抗干扰性强等特点。NAECQ系列高压验电器适用于 220V-500V 、6kV 、10kV 、35kV 、110kV 、220kV 、500kV 交流输配电线路和设备的验电，无论是白天或夜晚、室内变电所站或室外架空线上，都能正确、可靠地为您服务，是电力系统和工矿企业电气部门必备的安全用具。

高压验电器的分类

按照适用电压等级可分为：0.1-10kV、6kV、10kV、35kV、66kV、110kV、220kV、500kV。

技术参数

（1）6kV

有效绝缘长度：840mm 手柄长度：500mm 节数：5 护环直径：50mm 接触电极长度：50mm

（2）10kV

有效绝缘长度：840mm 手柄长度：500mm 节数：5 护环直径：50mm 接触电极长度：50mm

（3）35kV

有效绝缘长度：1400mm 手柄长度：500mm 节数：5 护环直径：50mm 接触电极长度：50mm

（4）110kV

适用电压等级：110kV 回态长度60cm 伸态长度200cm

（5）220kV

适用电压等级：220kV 回态长度80cm 伸态长度300cm

（6）500kV

适用电压等级：500kV 回态长度160cm 伸态长度720cm

NAECQ series of high-voltage electroscope

Brief introduction

HV Detectors made by an electronic integrated circuit sound light indication, stable and reliable. With full circuit self-test function and anti-jamming features. NAECQ series HV Detectors for electric inspection 220V-500V, 6kV, 10kV, 35kV, 110kV, 220kV, 500kV AC transmission and distribution lines and equipment, whether it is day or night, indoors or outdoors overhead line substation stations are correctly and reliably serve you, the electrical power system and the industrial and mining sectors necessary safety equipment.

Classification of NAECQ series H.V Detectors

Accordance with the applicable voltage level can be divided into :0.1-10kVH. V Detectors, 6kV, 10kVH.V Detectors, 35kV, 66kVH.V Detectors, 110kV, 220kVH.V Detectors, 500kVH.V Detectors.

Can be divided according to type: NAECQ-2 (green light Indication type).

Technical Parameters

(1) 6kV H.V Detectors

Effective insulation Length: 840mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm

(2) 10kV H.V Detectors

Effective insulation Length: 840mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm

(3) 35kV H.V Detectors

Effective insulation Length: 1400mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm

(4) 110kV H.V Detectors

Voltage rating: 110kV; back state length: 200cm; stretched length: 60cm

(5) 220kV H.V Detectors

Voltage rating: 220kV; back state length: 300cm; stretched length: 80cm

(6) 500kV H.V Detectors

Voltage rating: 500kV; back state length: 160cm;stretched length: 720cm
