| 产品参数 |
DYS（Modelmotor）针对大负载多轴飞行器的应用需求，强力推出了BE 系列超劲外转子多轴专用无刷电机，BE系列马达采用日本川崎1200# 0.2mm高效率矽钢片和40UH耐高温强力磁石。选用日本NSK纯进口轴承降低马达震动，外壳使用高精度CNC加工并经过专业动平衡测试，使得同心度、平衡性大大提升.
DYS BE系列多轴专用电机完美兼容99%以上市售商品无刷电调。
Specifications:
KV..............................................................................................................2750
Configu ration....................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length..........................................................................................5.0mm
Shaft Diameter.......................................................................................3.0mm

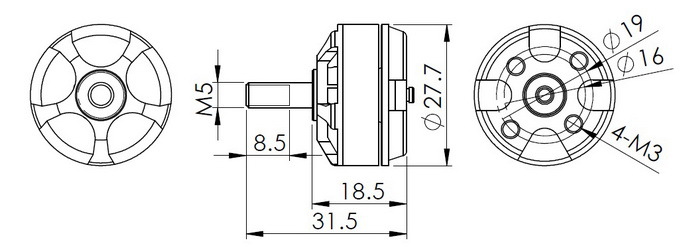

Motor Dimensions(Dia.*Len)...............................................Φ27.7×18.5mm
Weight (g)...................................................................................................27.5g
No.of Cells(Lipo).....................................................................................3-4S
Max Continuous current(A)............................................................35.8A
Max Continuous Power(W)...........................................................529.8W
Internal resistance..............................................................................0.06?
|
|||||||||||||||||||||
