USB&以太网1553B卡

USB&以太网1553B卡，1553B，EXCALIBUR，TROMPETER，TYCO。ALTADT厂家USB&以太网1553B卡

10/100/1000 EthernetMIL-STD-1553 Applications

? Thin-Server, Real-Time UDP Ethernet to/from 1553 **
? Remote 1553 Devices on the LAN – Small Size
? Auto Load BC, RT and BM Images for Fast Startup
? Auto BM Mode for 1553->Ethernet Bridging
? 5-30 VDC, 300-900 mAmp max/300-700 mAmp typical. 200g Weight, POE Optional, 1760 Startup
? Ideal for Lab or Rugged Deployed Applications

? IRIG-B RX Decode, PPS, Triggers, Discretes

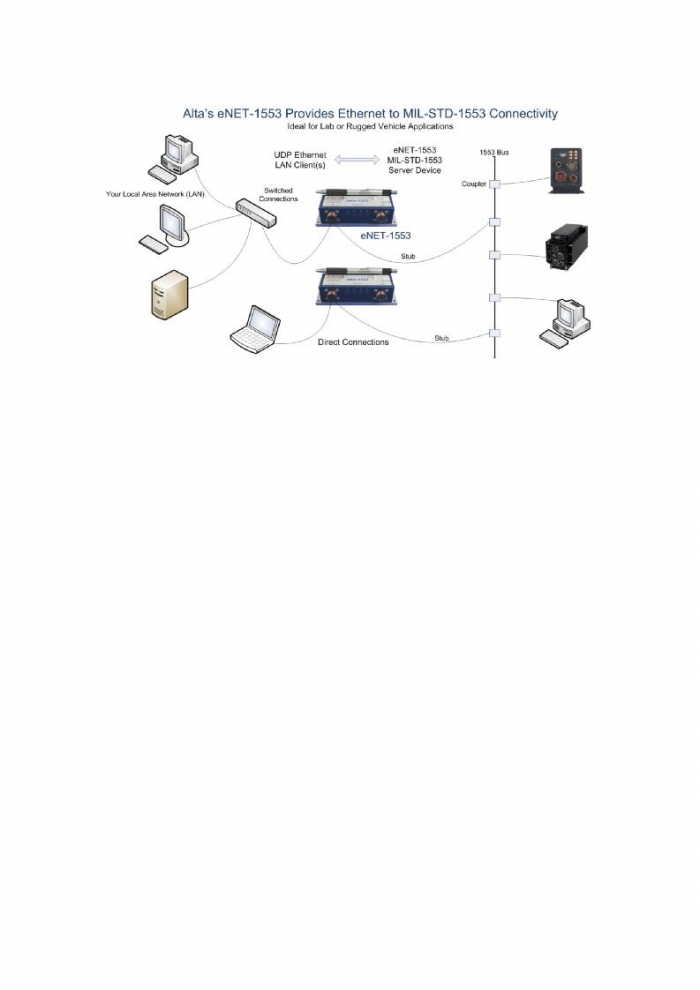

eNet-1553? is an innovative product that provides “remoting” of 1553 operations on 10/100/1000 Ethernet IP/UDP local area networks (LAN). eNet-1553 is a small, low-power, rugged device that provides connectivity for one dual redundant 1553 bus and is ideal for remoting 1553 connections for in-field applications or point-point lab usage.
Alta has combined the industry’s most advanced 32-bit 1553 FPGA protocol engine, AltaCore?, with a real-time IP/UDP thin server. The customer can implement their application with the same feature-rich application programming interface, AltaAPI?, as used with standard cards – often without even recompiling - the utlimate in code portability.
**NOTE: eNet-1553 (server) is a real-time Ethernet/1553 device, but your computers’ (client) IP stack may not be! The eNet-1553 device provides real-time UDP receive and transmit requests to 1553 buffers, but the client’s IP/UDP stack will induce path delays as compared to backplane cards. For many applications (<100-1000 packets per second), this product will provide unparalleled flexibility in 1553 configurations (much better than USB devices). .
