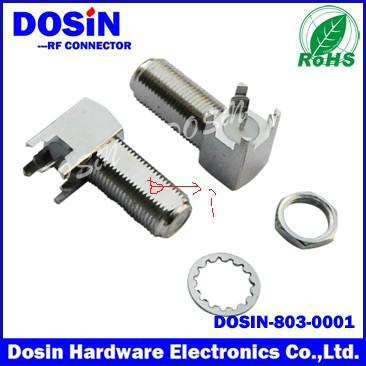

F头连接器

厂商 :东莞市德索电子有限公司

广东 东莞
  • 主营产品:
联系电话 :13763155497
商品详细描述

F头连接器典型用于75Ω电缆分配系统,特别是CATV,广播电视网络。

F头连接器既可用于有阻抗匹配要求的场合,也可用于非匹配场合。

F头连接器特点是螺纹连接、插合方便。

F型连接器典型用于75Ω电缆分配系统,特别是CATV,广播电视网络,它既可用于有阻抗匹配要求的场合,也可用于非匹配场合。其特点是螺纹连接、插合方便、价格适宜。

F型连接器可与国际上同类产品互换使用。FL10产品为M10X0.75螺纹,结构、性能与F型相同。


 F type joining devices use for 75 Ω cable assign system, especially CATV, broadcast television network, It can already be used for having impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl , the price is suitable.

F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.


主要技界面尺寸 INTERFACE MATING DIMENSIONS

术特性  TECHNICAL CHARACTERISTICS

振    动  Vibrat ion                 100m/s2 (10~500Hz)

特性阻抗  Impedance                 75Ω

频温度范围  Temp.range                -40~+60°C

率范围  Frequency Range           DC~1GHz

工作电压  Working Voltage           170V max (有效值)

耐    压  Withstand Voltage         500V rms (海平面有效值)

接触电阻  Contact resistance

内导体之间 Center Contact           ≤ 10 mΩ

外导体之间 Outer Contact            ≤ 5 mΩ

绝缘电阻  Insulation resistance     ≥ 1000 MΩ

电压驻波比 VSWR  直式  Straight     ≤ 1.20

                弯式  Right angle  ≤ 1.30

耐用性    Durability(mating)        ≥500次(cycles)



材料与涂覆 MATERIAL & PLATING

壳体      shell           黄铜  brass                  镀亮镍   nickel plated

插针      contact pin     黄铜  brass                  镀金或银 gold or silver plated

弹性接触件elastic contact 锡青铜beryllium or tin brass 镀金或银 gold or silver plated

绝缘体    insulator      PTFE or PE

压接套    crimp ferrule   铜合金      copper alloy     镀亮镍   nickel or gold plated

o型密封件o-ring sealing   硅橡胶 6146 silastic
